Technical Details for the VS-BXLR

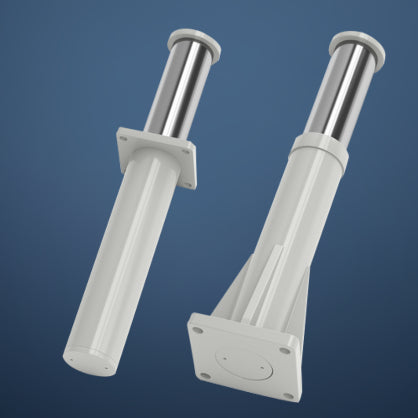

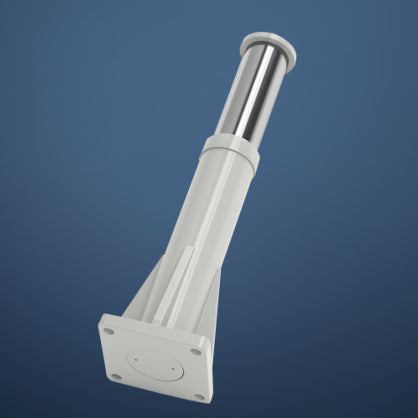

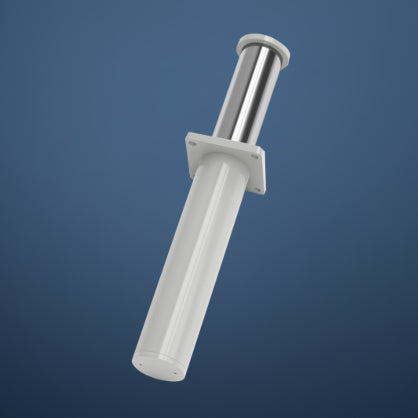

The VS-BXLR viscoelastic shock absorbers from ACE Controls offer energy capacities from 6,000 Nm to 100,000 Nm per cycle and strokes from 150 mm to 400 mm. Utilising hydrostatic compression principles, they combine the functions of shock absorbers and a spring for high damping efficiency, minimal sensitivity to temperature changes, and enhanced safety through integrated static preload. Ideal for heavy industry, they are widely used in material handling, rolling mills, defence, waterways, and paper production

Energy capacity 6,000 Nm/Cycle to 100,000 Nm/Cycle
Stroke 150 mm to 400 mm
Dynamic force range 25,000 N to 320,000 N
Static force range 27,500 N to 224,000 N
Impact velocity range 0.5 m/s to 5 m/s. Other speeds on request.
Operating temperature range -20oC to +50oC
Material Outer body, Rod end button: steel painted grey; Piston rod: zinc plated steel
Operating Fluid Visco-elastic fluid
Mounting In any position
Positive Stop Integrated
Note: The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.
Manufacturer ACE Stoßdämpfer GmbH
