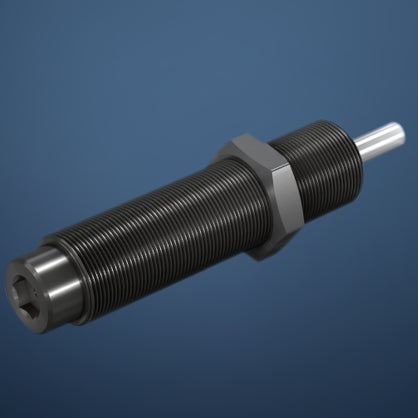

Technical Details for the MC225EUM


The MC225EUM is a high-performance, self-compensating miniature shock absorber designed with ACE's advanced rolling diaphragm technology. This feature ensures hermetic sealing, separating the damping fluid from surrounding air and enabling direct installation in pressure chambers up to 7 bar. The absorber offers exceptional durability, supporting up to 25 million cycles with low resetting forces, making it maintenance-free and ready for immediate use.

The MC225EUM is ideal for use in linear slides, pneumatic cylinders, swivel units, handling modules, machines, measuring tables, and other industrial systems requiring compact and reliable energy absorption. This shock absorber's versatility, durability, and advanced design make it a top choice for demanding industrial applications.

Energy capacity 41 Nm/Cycle
Stroke 12 mm
Impact velocity range 0.06 m/s to 6 m/s.
Operating temperature range 0oC to +66oC
Material Outer body, Accessories: steel corrosion-resistant coating;
Main bearing: plastic;
Piston rod: hardened stainless steel (1.4125, AISI 440C);
Rolling diaphragm: EPDM
Damping Medium Oil, Temperature Stable
Mounting In any position
Positive Stop Integrated
Manufacturer ACE Stoßdämpfer GmbH
