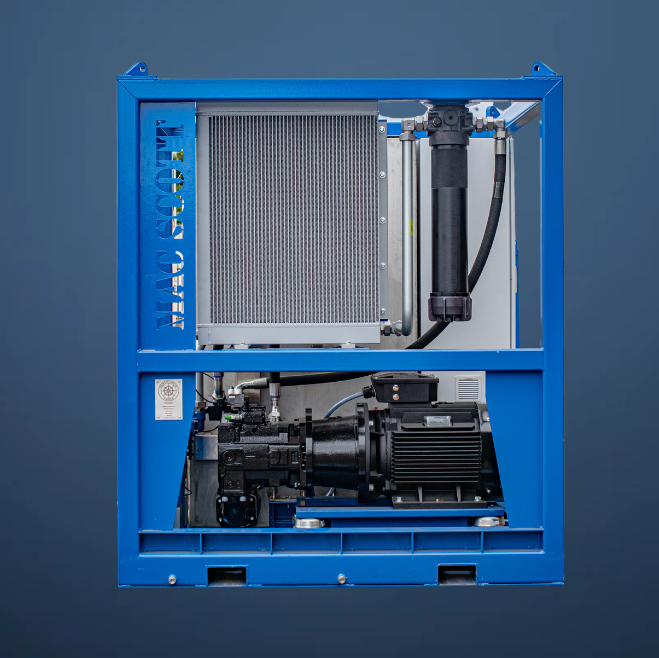

Technical Details for the HIL 1004 - FLUSHING UNIT
Available for hire from MacScott Bond, the HU 1004 is suited to non-hazardous onshore applications requiring reliable high-flow hydraulic flushing, including the cleaning of newly installed pipework, hydraulic systems following component replacement or maintenance, and systems where controlled oil cleanliness is required before commissioning or return to service.
| Electric Motor | 30kW 400V / 3ph / 50Hz |
| Supply Filter | 3 micron |
| Return Filter | 3 micron |
| Elements | 1x 8MR6303A03AP01 1x 8CU4005A03ANP01 |
| Controls | Pressure Control Valve With Digital Display Flow Control Valve With Digital Display MP Filtri 4.0 ICM Contamination Monitor |
| Cooling | Thermostat Set Electric Cooler |
| Fluid | Mineral Oil Only |
| Connections | 2 Inch BSPP Female Ports |
| Construction | Carbon Steel |
| Dimensions | 1650mm Length x 1500mm Width x 1950mm Hight |
| Weight | 2000 Kgs (Gross). |
| Compliance | Non-Hazardous Areas |
| Manufacturer | MacScott Bond Ltd. |
