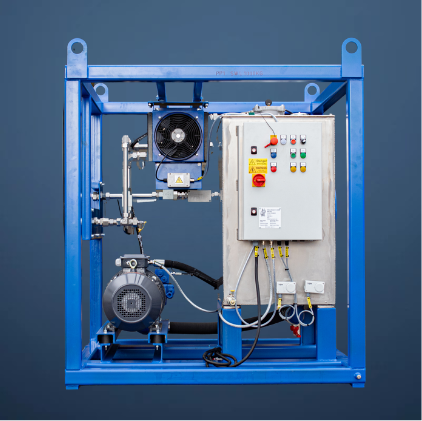

Technical Details for the HIL 1006/1007 - Flushing Unit
Available for hire from MacScott Bond, the HIL 1006/1007 is suitable for non-hazardous onshore applications, including flushing newly installed hydraulic pipework, removing contamination introduced during maintenance or component replacement, and cleaning hydraulic circuits before commissioning or return to service.
| Electric Motor | 15 KW Electro Hydraulic Power Pack 415V, 50HZ 3PH 32 Amp |
| Supply Filter | 3 micron |
| Return Filter | 3 micron |
| Elements | 1x EPB33NFA 1x ERA52NFA |
| Controls | Pressure Control Valve Inline Flow Meter |
| Cooling | Thermostat Set Electric Cooler |
| Fluid | Mineral Oil Only |
| Connections | DKL (AFL) 35L (can be adapted to clients requirements) |
| Construction | Carbon Steel |
| Dimensions | 1650mm Length x 1500mm Width x 1950mm Hight |
| Weight | 1700 Kgs (Gross). |
| Compliance | Non-Hazardous Areas |
| Manufacturer | MacScott Bond Ltd. |
